Automation of a metal can forming and inspection line

Intro

We designed and implemented a fully automated system for a metal can forming line, dedicated to processing metal sheets and assembling cans of various sizes.
The solution was developed to ensure a fully automated flow, from raw metal sheet processing to final inspection and transport of finished products to the logistics area.

Process Description

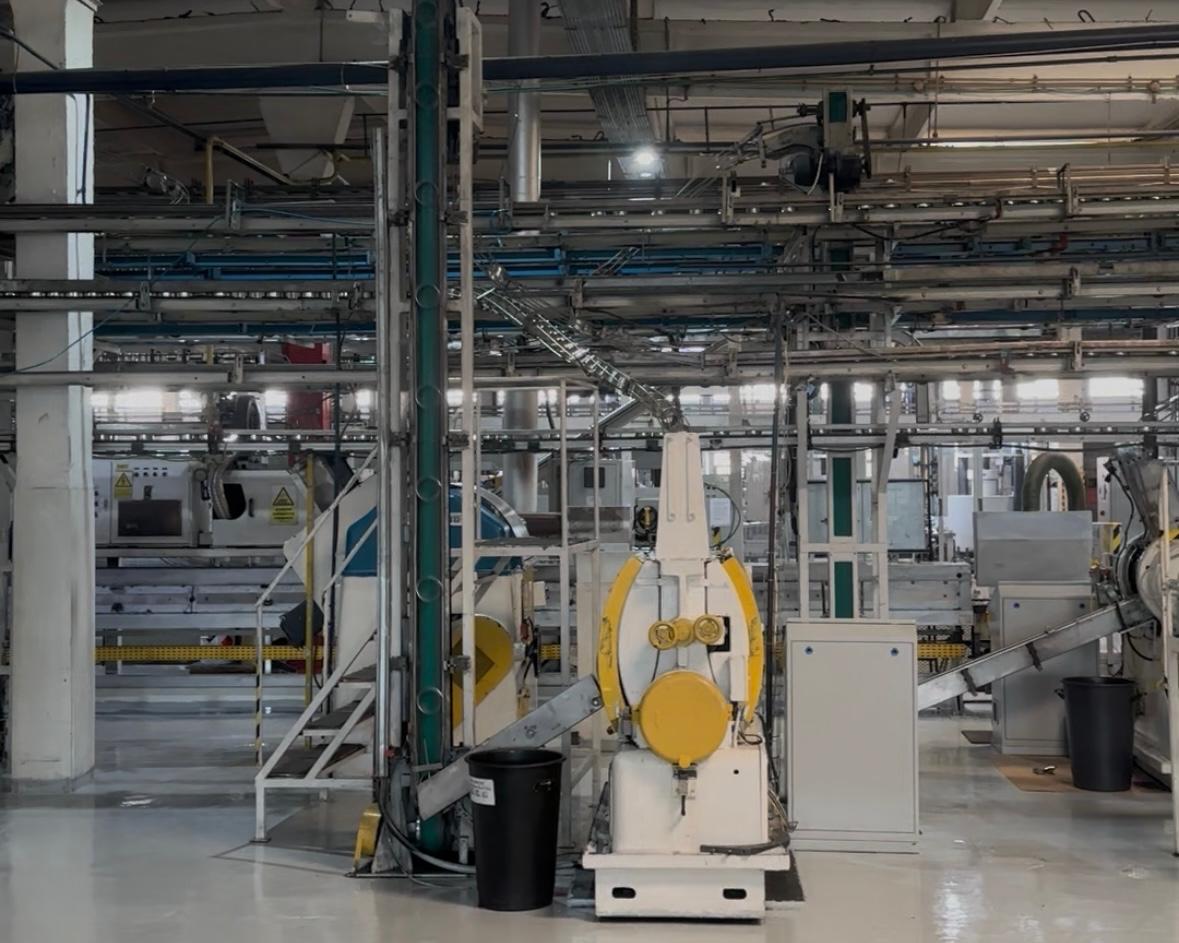

The process begins with the automatic feeding of the metal sheet, which is stamped, bent, and processed to form the can body.

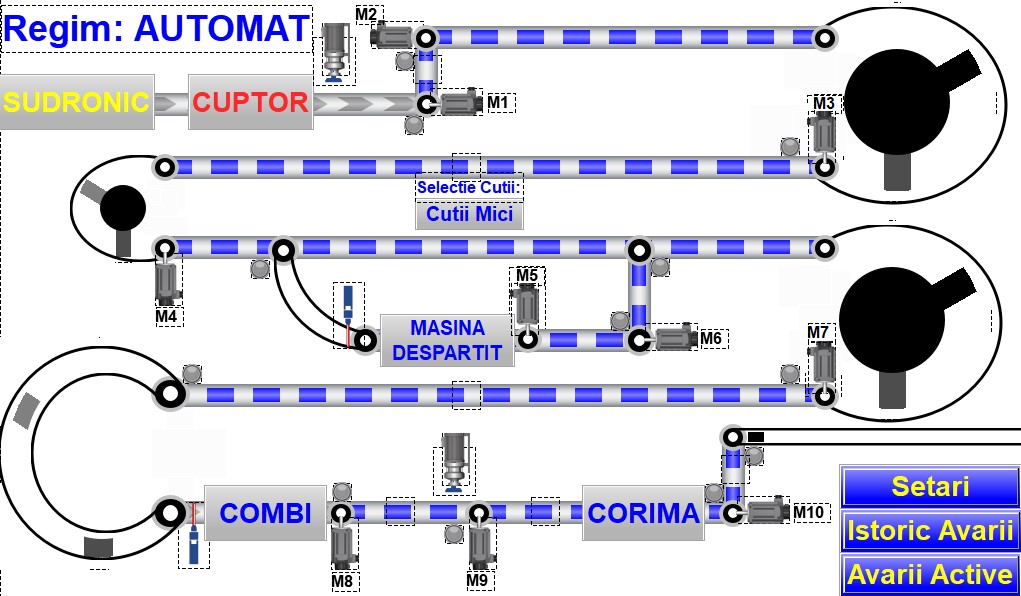

Next, the material passes through welding and heat treatment stations (seam welding and oven), after which the parts undergo automatic quality control:

• Conforming products are picked up by a magnetic conveyor and transported further.
• Non-conforming products are automatically removed via pneumatically operated plastic flaps or compressed air blow-off.

After the separation of good products, they are automatically sorted by size (large/small cans) and then enter an assembly station where metal lids are applied.

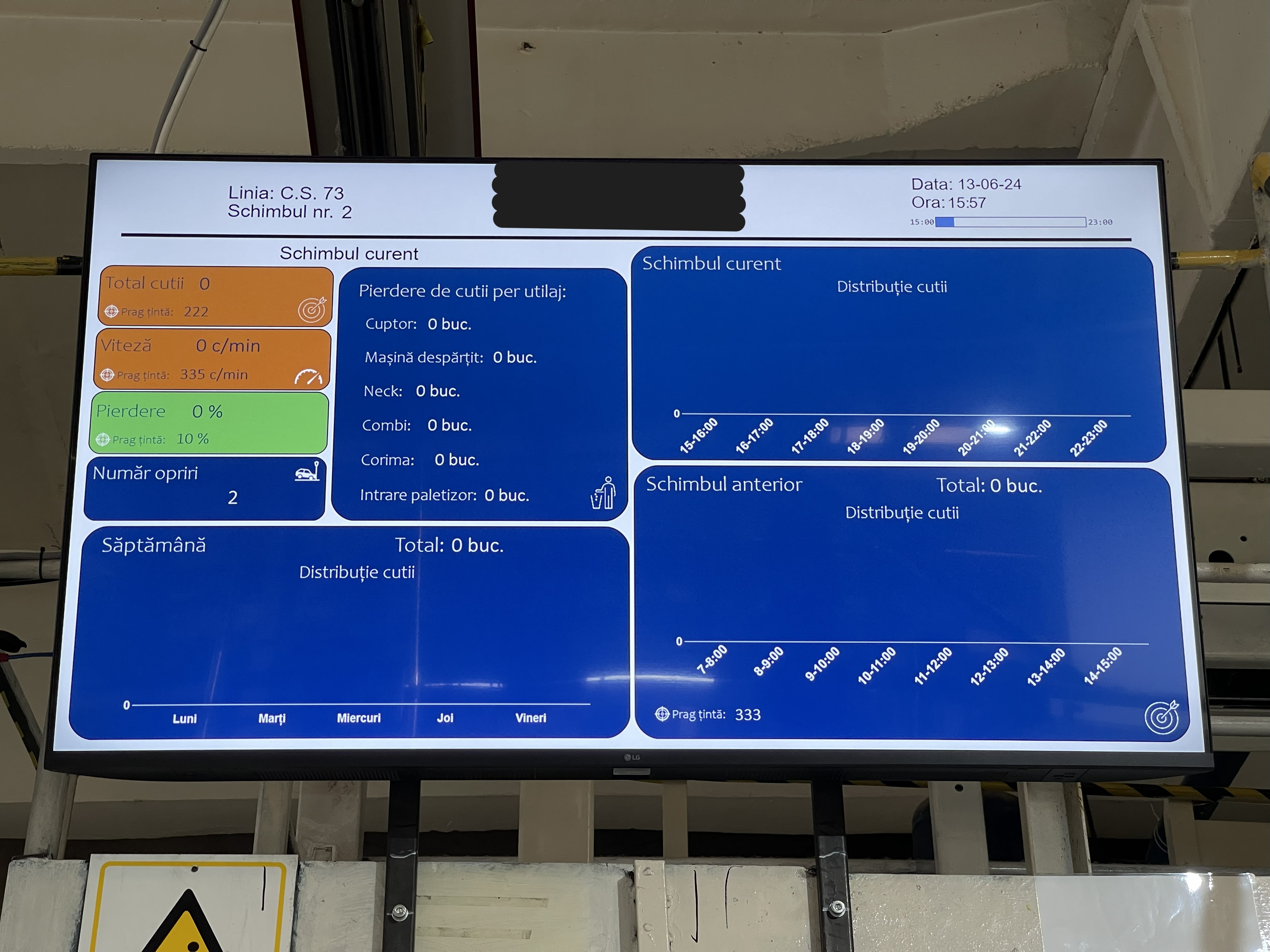

The finished products are then transported to the counting, packaging, and logistics area, from where they are transferred to another hall.
