Intro:

I developed a complete automation system for a liquid detergent factory, designed to precisely control the dosing, mixing, and homogenization of chemical substances according to the selected recipe.
The goal was to create a fully automated, safe, and flexible process that guarantees consistent product quality.

General Description:

‍The process starts from a main 20-ton tank where various substances are combined to obtain the desired detergent.
The operator selects the recipe directly from the HMI interface, where parameters such as:
• mixing time,
• homogenization duration,
• resting period for composition stabilization,
• type of fragrance or additive added,
can be adjusted.

Mixing is performed either by a high-power agitator or by recirculation pumps, automatically controlled depending on the recipe type.The entire substance flow is controlled through a network of pneumatic solenoid valves monitored in real time by the PLC.

For process control and safety, we integrated:
• pressure sensors,
• flow sensors,
• precision flowmeters,
all permanently monitored both automatically and on the HMI, with alarms and notifications for any deviation from normal parameters.

Have a project in mind?

Professional electricians ensuring your safety first.

Thank you! Your submission has been received!

Oops! Something went wrong while submitting the form.

HMI Interface and PLC Programming:

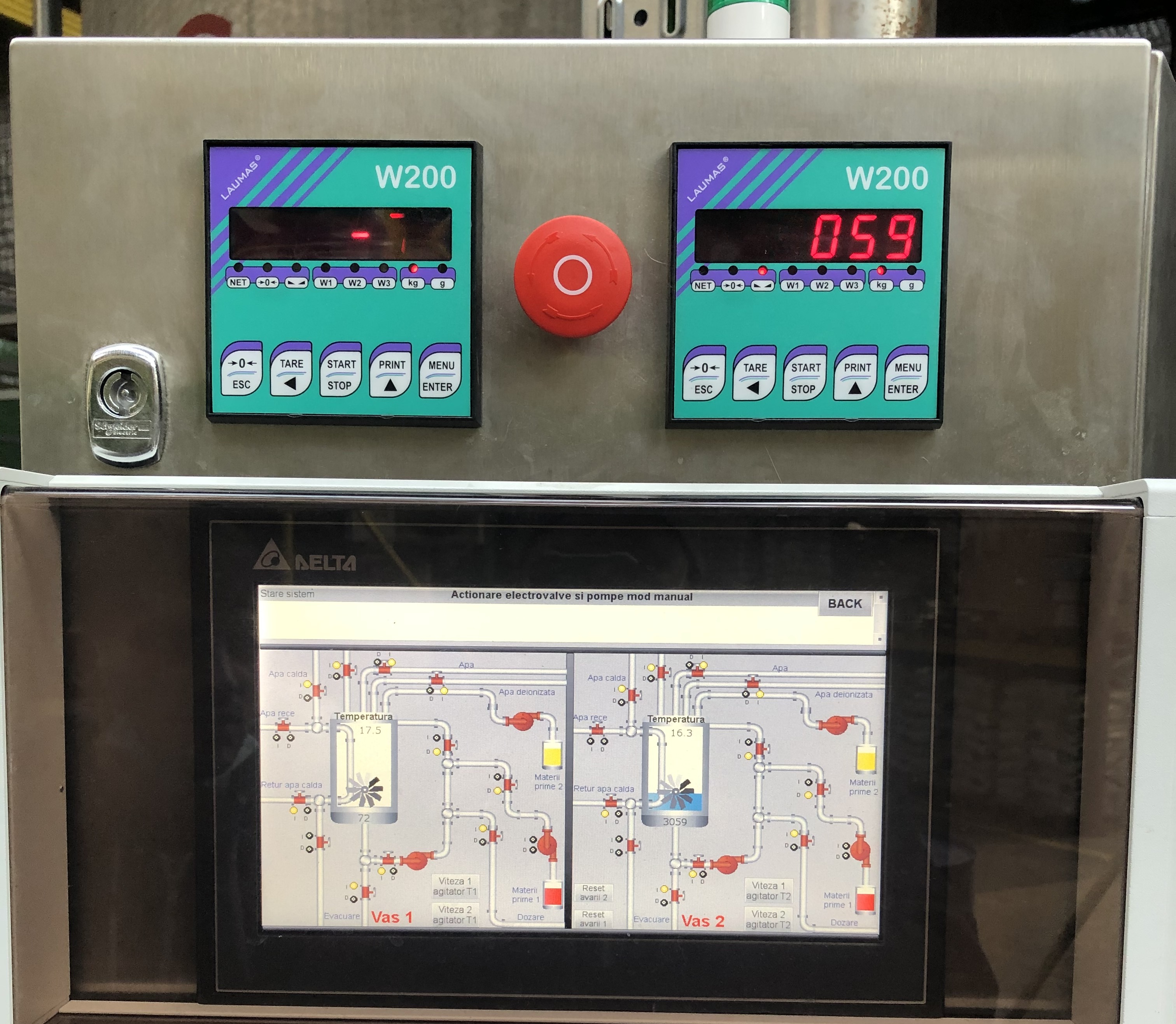

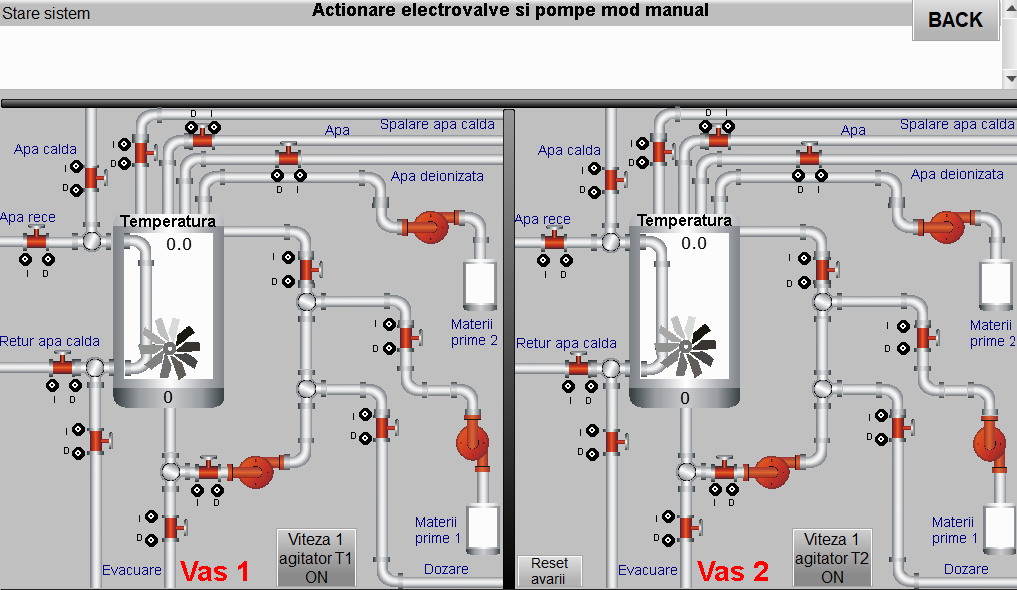

‍The system is entirely controlled by an industrial PLC, fully integrated with an intuitive and graphical HMI interface, allowing:

real-time visualization of process status and measured values (pressure, flow, rate),
adjustment of production parameters based on operator access level,
monitoring of mixing, homogenization, and fragrance-adding stages.

‍The system manages over 10 different recipes, each with unique sequences and timings.

Complete Implementation:

‍Our team ensured the full implementation of the project, from concept to final commissioning:

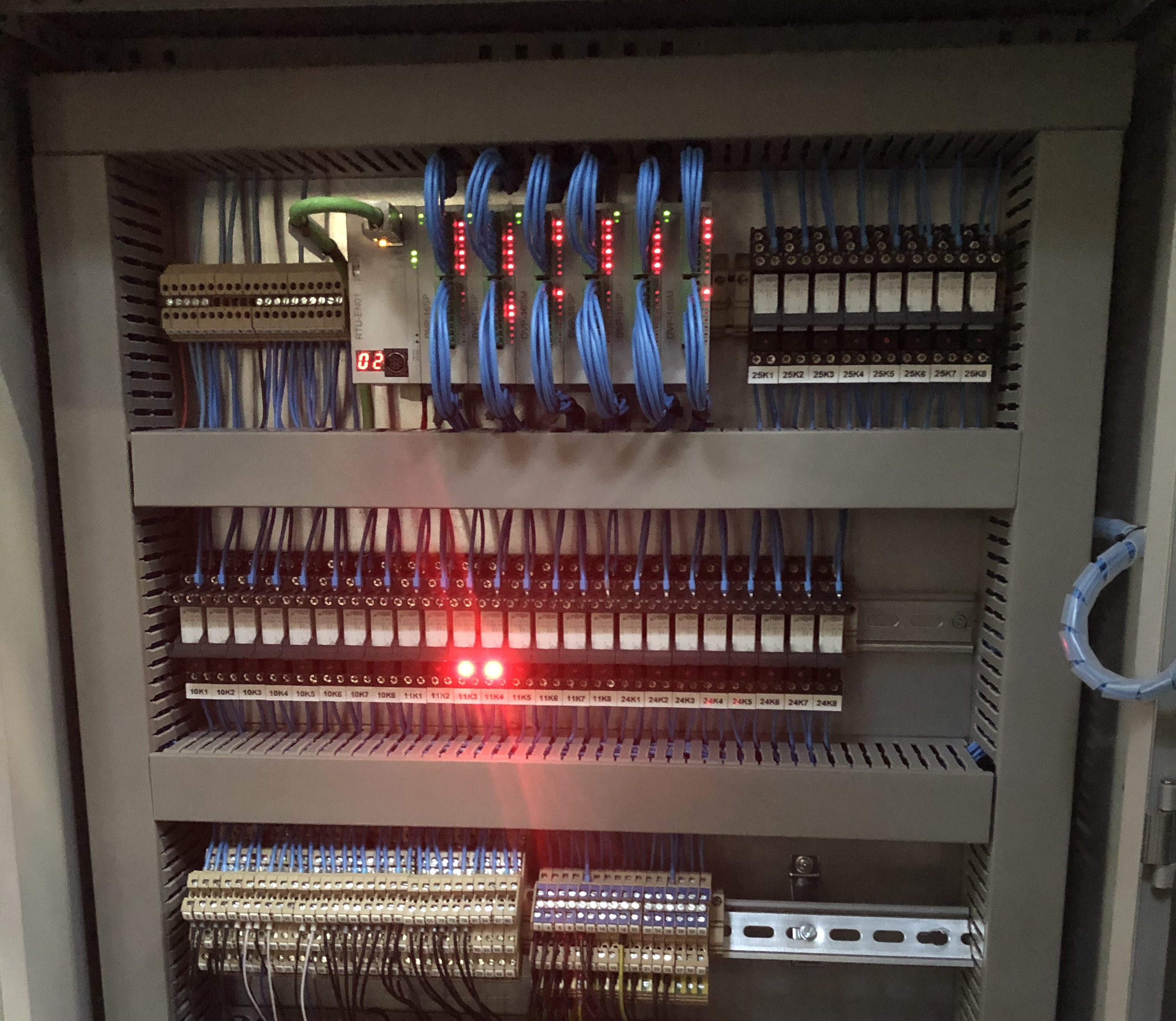

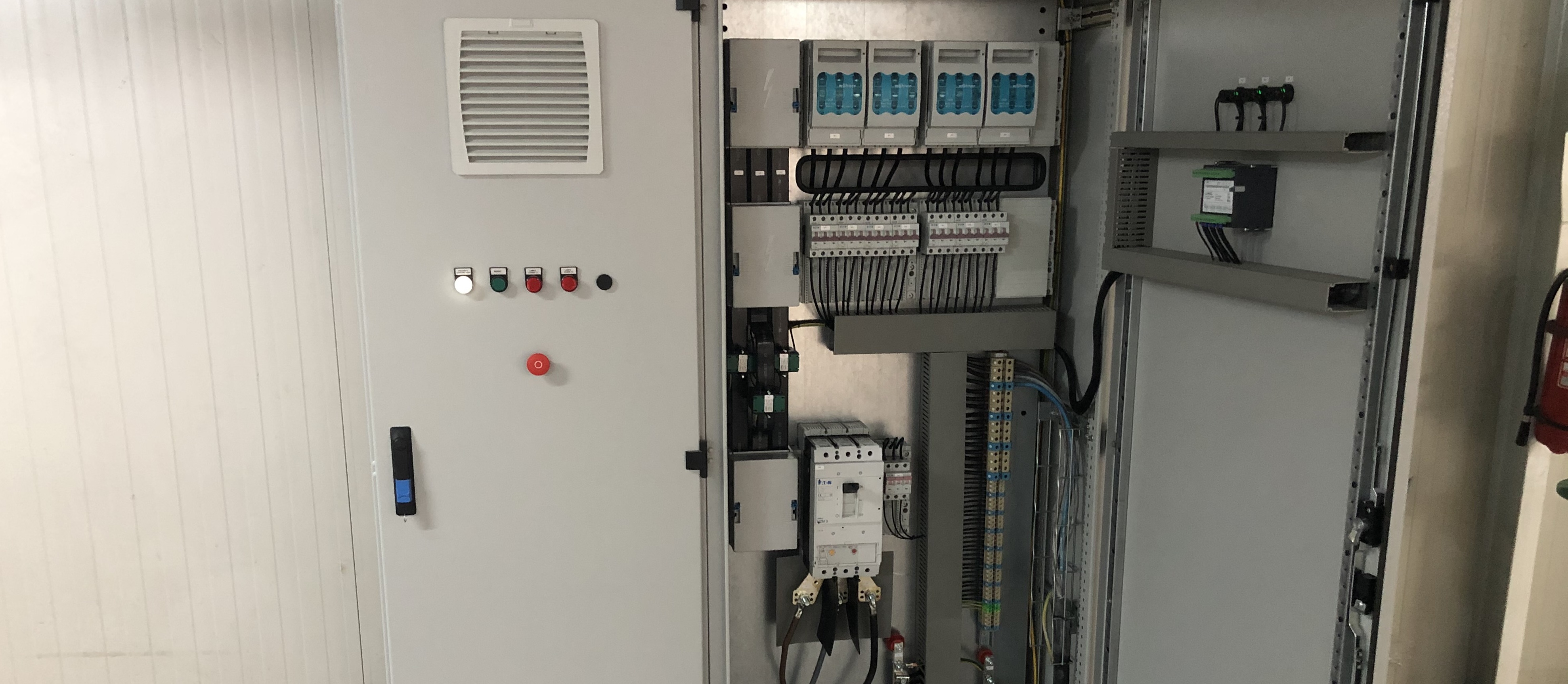

design and construction of the electrical diagram and automation panel,
PLC and HMI programming,
installation and complete on-site wiring,
integration of sensors and flowmeters,
testing, calibration, and final commissioning.

Some processes are fully automatic, while others include controlled pause stages for sample collection and quality verification.

‍

Results and Benefits:

Complete automation of the detergent production process;
Precise control and continuous monitoring of pressure, flow, and substance transfer;
Ability to quickly define and modify recipes;
High safety and traceability;
Significant reduction of manual interventions and risk of human error.‍‍
